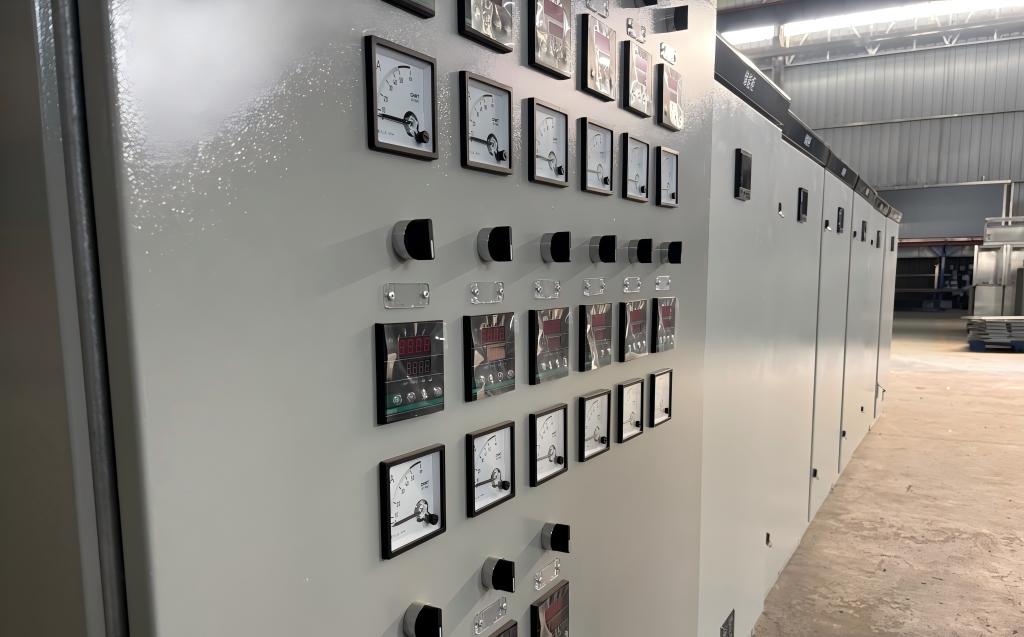

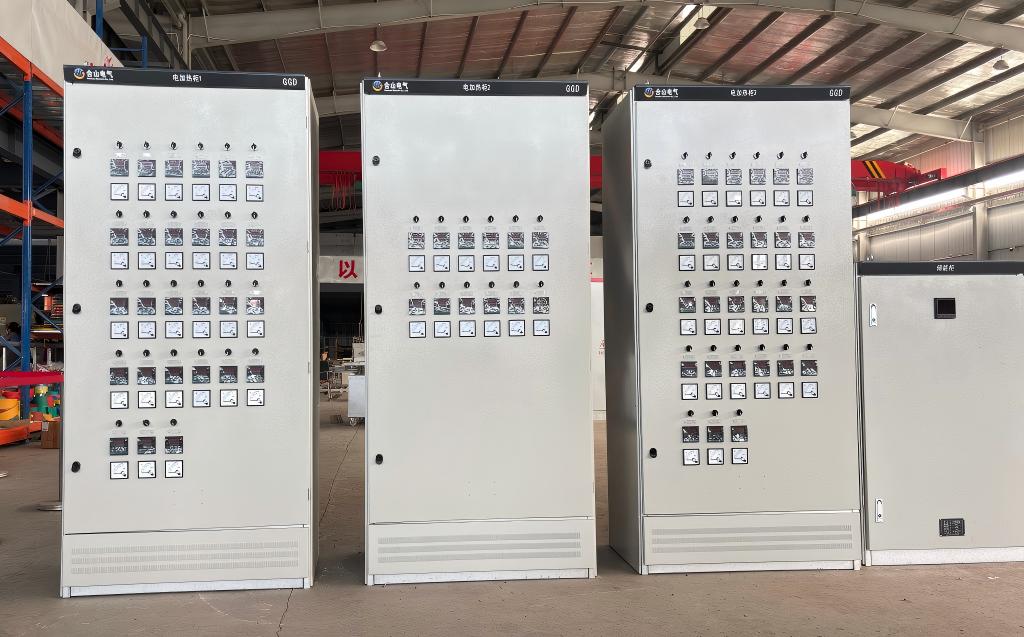

GGD Low Voltage Switchgear
">
GGD Low Voltage Switchgear
Products Details
GGD model AC applies to power plant, substation industrial enterprise, as motive force in AC 50/60Hz, rat ed working voltage 380/400V, rated current 3150A and below distribution system. For transferring power energy, distributing and controlling of lightning and distribution. High breaking capacity, rated short time current will reach 50kA. Flexible circuit scheme, convenient combination, novel structure.
Product feature
● Stability: High breaking capacity, good dynamic thermal stability, and stable power output under various working conditions, ensuring continuous and stable operation of the power system.
● Flexibility: Flexible electrical solutions, convenient combinations, can be connected in series, and can be configured according to different power requirements to meet the needs of various application scenarios.
● Economy: GGD cabinet power distribution solutions are flexible, ensuring safety while providing cost-effective power solutions.
● Design Advantages: Components of the general-purpose cabinet are designed based on a modular principle, with 20mm module installation holes and a high degree of universality. This enables factories to carry out pre-production, shorten production cycles, and improve work efficiency.
● Quality Advantages: The GGD cabinet structure adopts a general-purpose cabinet design, with the frame partially welded from cold-formed steel profiles, making the structure sturdy.
Operating conditions
● Ambient temperature: -25 °C ~ +45°C
● Humidity: daily average ≤ 95%; monthly average ≤ 90%
● Altitude: ≤ 4000 meters
● Earthquake resistance: 8 degree
● Tilt angle:≤5
Technicaldata
| Item | Unit | Data | |
| Rated voltage | KV | 12 | |
| Rated insulation level | 1min.PE.withstand voltage (phases to ground/gaps) |
KV | 42/48 |
| Lightning impulse withstand voltage (phases to ground/gaps) |
KV | 75/85 | |
| Rated frequency | Hz | 50 | |
| Rated current | A | 1250 | |
| Rated short-time withstand current(4s) | KA | 31.5 | |
| Rated peak withstand current※ | 80 | ||
| Protection class | IP4X | ||

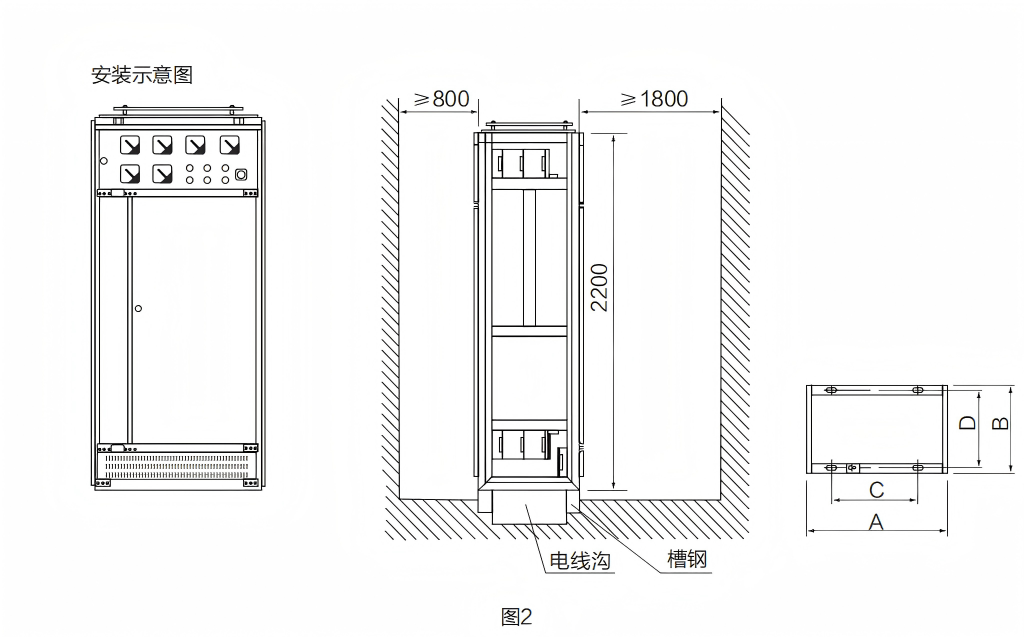

| Outline dimension(width×depth×height) | mm | 900(1100)×1000×2300 | |
| Weight | kg | 800-1100 | |
